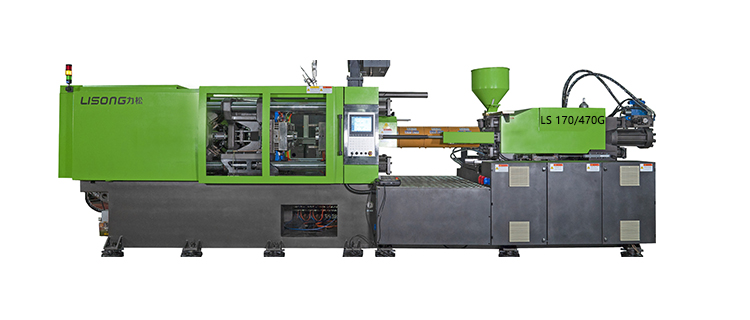

Vertical Plastic Tableware High Speed Multi Function Auto Cnc Blow Molding Machines
LS 170/470G
minimum order
1 piece
Supply Ability
600.0piece / Year
Country of Origin
NINGBO
Quantity:
USD30650.15 - USD30650.15 / piece
- Product name:Injection molding machine
- model:LS 170/470G
- Fuel tank capacity:320
- Machine size:4.4*1.4*1.75m
- Plastic Type:Thermoplastic
- Automatic:yes
- Plastic Processed:PP
- Plastic Processed:ABS
- Plastic Processed:PE
- Plastic Processed:HDPE/PP
- Plastic Processed:ABS/PP
- Plastic Processed:PE/PP
- Condition:New
- Machine Type:Hydraulic
- Type:Tube Head Injection
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Online support
- Key Selling Points:High Productivity
- Applicable Industries:Manufacturing Plant
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Malaysia
- Local Service Location:South Africa
- Local Service Location:Nigeria
- Showroom Location:Egypt
- Showroom Location:Pakistan
- Showroom Location:Chile
- Showroom Location:South Africa
- Showroom Location:Uzbekistan
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Bearing
- Core Components:Motor
- Core Components:Pump
- Core Components:Gear
- Core Components:PLC
- Core Components:Pressure vessel
- Core Components:Engine
- Core Components:Gearbox
- Core Components:Screw
- Place of Origin:CN;ZHE
- Style:Horizontal
- Distance between Tie Bars(Width)(mm):470mm
- Distance between Tie Bars(Height)(mm):410mm
- Plasticizing Capacity(g/s):26
- Mold Height(mm):180 - 520 mm
- Ejector Stroke(mm):140
- Ejector Force(kN):67
- Theoretical Shot Volume(cm³):183
- Injection Rate (g/s):404
- Injection Weight (g):167
- Screw diameter (mm):35
- Screw L/D Ratio:22
- Distance between Tie Bars:470*410
- Weight (KG):5000
- Open Stroke(mm):430
- Model Number:LS 170/470G
- Brand Name:lisong
- Power (kW):220
- Marketing Type:New Product 2021
clamping unit | LS170/470G | ||||||||||
clamping force | 1700 | ||||||||||
locking force | 1870 | ||||||||||
max.mould opening stroke | 430 | ||||||||||
min.mould height | 180 | ||||||||||
max.mould height | 520 | ||||||||||
max.daylight | 950 | ||||||||||
mould platen(h*v) | 715*655 | ||||||||||
ejection stroke | 140 | ||||||||||
ejection force | 67 | ||||||||||
injection unit | 340 | 600 | |||||||||
screw diameter | 30 | 35 | 40 | 40 | 45 | 50 | |||||
screw geometry | standard标准 | ||||||||||
l/d ratio | 22 | 22 | 22 | 22 | 22 | 22 | |||||
max.shot weight(ps) | 122 | 127 | 217 | 263 | 333 | 411 | |||||
max.screw stroke | 190 | 190 | 190 | 230 | 230 | 230 | |||||
max.nozzle dipping depth(svo) | 50 | 50 | |||||||||
hopper capacity | 35 | 35 | |||||||||
>capacity with electr drive | 52 | 55 | 57 | 67 | 70 | 73 | |||||
net weight(without oil) | 5000 | 5400 | |||||||||
